Create Android spinner (drop down list) example


In this posted we show you how to do the following this:

1-Render a Spinner in XML, and load the selection items via XML file also.
2-Render another Spinner in XML, and load the selection items via code dynamically.
3-Attach a listener on Spinner, fire when user select a value in Spinner.
4-Render and attach a listener on a normal button, fire when user click on it, and it will display selected value of Spinner.
1. First we need to create list of items in spinner
 Open folder " res/values/strings.xml" file, and we need to definde the list of items

strings.xml file



<?xml version="1.0" encoding="utf-8"?>
<resources>

    <string name="app_name">MyAndroidApp</string>
    <string name="country_prompt">Choose a country</string>

    <string-array name="country_arrays">
        <item>Thai</item>
        <item>United States</item>
        <item>Indonesia</item>
        <item>France</item>
        <item>Italy</item>
        <item>Singapore</item>
        <item>New Zealand</item>
        <item>India</item>
    </string-array>

</resources>
2 . Spinner (DropDown List)

Open folder "res/layout/main_activity.xml" and add spinner and button
1. "spinner1”, the “android:entries” represents the selection items in spinner.
2. “spinner2”, the selection items will be defined in code later.

  Open folder "res/layout/main_activity.xml" add the code below :

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical" >

    <Spinner
        android:id="@+id/spinner1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:entries="@array/country_arrays"
        android:prompt="@string/country_prompt" />

    <Spinner
        android:id="@+id/spinner2"
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

    <Button
        android:id="@+id/btnSubmit"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Submit" />

</LinearLayout>


3. In MainActivity.java

package com.spinner.example.android;

import java.util.ArrayList;
import java.util.List;
import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.Spinner;
import android.widget.Toast;

public class MainActivity extends Activity {

  private Spinner spinner1, spinner2;
  private Button btnSubmit;

  @Override
  public void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.main);

 addItemsOnSpinner2();
 addListenerOnButton();
 addListenerOnSpinnerItemSelection();
  }

  // add items into spinner dynamically
  public void addItemsOnSpinner2() {

 spinner2 = (Spinner) findViewById(R.id.spinner2);
 List<String> list = new ArrayList<String>();
 list.add("list 1");
 list.add("list 2");
 list.add("list 3");
 ArrayAdapter<String> dataAdapter = new ArrayAdapter<String>(this,
  android.R.layout.simple_spinner_item, list);
 dataAdapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
 spinner2.setAdapter(dataAdapter);
  }

  public void addListenerOnSpinnerItemSelection() {
 spinner1 = (Spinner) findViewById(R.id.spinner1);
 spinner1.setOnItemSelectedListener(new CustomOnItemSelectedListener());
  }

  // get the selected dropdown list value
  public void addListenerOnButton() {

 spinner1 = (Spinner) findViewById(R.id.spinner1);
 spinner2 = (Spinner) findViewById(R.id.spinner2);
 btnSubmit = (Button) findViewById(R.id.btnSubmit);

 btnSubmit.setOnClickListener(new OnClickListener() {

   @Override
   public void onClick(View v) {

     Toast.makeText(MyAndroidAppActivity.this,
  "OnClickListener : " +
                "\nSpinner 1 : "+ String.valueOf(spinner1.getSelectedItem()) +
                "\nSpinner 2 : "+ String.valueOf(spinner2.getSelectedItem()),
   Toast.LENGTH_SHORT).show();
   }

 });
  }
}


Custom Select item


package com.spinner.example.android;

import android.view.View;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemSelectedListener;
import android.widget.Toast;

public class CustomOnItemSelectedListener implements OnItemSelectedListener {

  public void onItemSelected(AdapterView<?> parent, View view, int pos,long id) {
 Toast.makeText(parent.getContext(),
  "OnItemSelectedListener : " + parent.getItemAtPosition(pos).toString(),
  Toast.LENGTH_SHORT).show();
  }

  @Override
  public void onNothingSelected(AdapterView<?> arg0) {
 // TODO Auto-generated method stub
  }

}

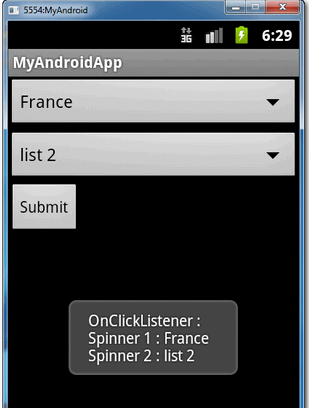

4 Run Our App
